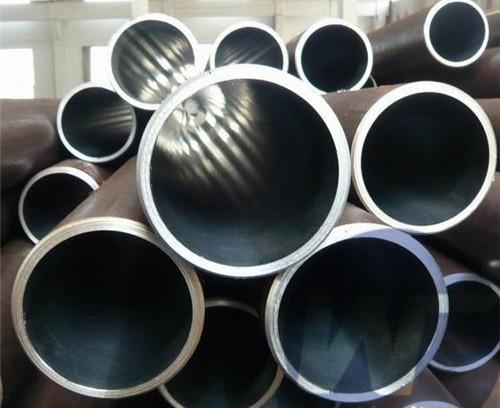

Honed tube is widely used for producing hydraulic cylinders and pneumatic
cylinders, our factory is one of the leading hydraulic cylinder
honed tube suppliers in China. We manufacture and supply cylinder honed tubes made of
carbon steel grades and stainless steel grades.
Our factory's honed tube is produced by honing process or skiving & roller burnishing process,
using “Suitable To Hone” Cold Drawn Seamless Tubes. The type of the
processing is determined by the size, available mold and the request of the customer.
Our Steel Honed tubes mostly is made of high quality carbon steel
grades ST52.3, SAE 1020. The raw material steel mother tubes are
from top quality China steel manufacturer.
Product details of our honed tubes
Here below is the detailed description of our honed cylinder tubes.
Inner Diameter Range: 32 mm to 800 mm;
Length: random length and fixed length available. Max. length 15m.
Tube Straightness: max 1mm per 1000mm;
Manufacturing method: Seamless, Hot Rolled, Cold Rolled, Cold Drawn
Delivery Condition: BK, BK+S
Inside surface Roughness: Ra 0.2μm to Ra 0.4μm
Inner diameter Tolerance: ISO H7,H8,H9
Protection: Anti-rust oil on inside and outside surface, plastic
caps in both ends.
Packing: Bundle with steel strip and PE sheet or wooden case
Our honed cylinder tubes are available in both metric dimensions
and imperial dimensions.
Size list of honed tubes
| Inside diameter | Outside Diameter | Wall thickness | Length |
| mm | mm | mm | m |
| 32 | 40 | 4 | 6 |
| 35 | 45 | 5 | 6 |
| 40 | 50 | 5 | 6 |
| 50 | 60 | 5 | 6 |
| 55 | 65 | 5 | 6 |
| 60 | 70 | 5 | 6 |
| 60 | 75 | 7.5 | 6 |
| 60 | 80 | 10 | 6 |
| 63 | 75 | 6 | 6 |
| 63 | 78 | 7.5 | 6 |
| 65 | 75 | 5 | 6 |
| 65 | 80 | 7.5 | 6 |
| 70 | 80 | 5 | 6 |
| 70 | 85 | 7.5 | 6 |
| 70 | 90 | 10 | 6 |
| 75 | 90 | 7.5 | 6 |
| 75 | 95 | 10 | 6 |
| 80 | 90 | 5 | 6 |
| 80 | 95 | 7.5 | 6 |
| 80 | 100 | 10 | 6 |
| 85 | 100 | 7.5 | 6 |
| 90 | 105 | 7.5 | 6 |
| 100 | 115 | 7.5 | 6 |
| 100 | 120 | 10 | 6 |
| 100 | 125 | 12.5 | 6 |
| 110 | 125 | 7.5 | 6 |
| 110 | 130 | 10 | 6 |
| 115 | 130 | 7.5 | 6 |
| 120 | 140 | 10 | 6 |
| 120 | 145 | 12.5 | 6 |
| 120 | 150 | 15 | 6 |
| 125 | 145 | 10 | 6 |
| 125 | 150 | 12.5 | 6 |
| 130 | 150 | 10 | 6 |
| 140 | 160 | 10 | 6 |
| 140 | 165 | 12.5 | 6 |
| 140 | 170 | 15 | 6 |
| 145 | 170 | 12.5 | 6 |
| 145 | 175 | 15 | 6 |
| 150 | 170 | 10 | 6 |
| 150 | 180 | 15 | 6 |
| 160 | 180 | 10 | 6 |
| 160 | 185 | 12.5 | 6 |
| 160 | 190 | 15 | 6 |
| 160 | 200 | 20 | 6 |
| 180 | 200 | 10 | 6 |
| 180 | 210 | 15 | 6 |
| 180 | 220 | 20 | 6 |
| 200 | 220 | 10 | 6 |
| 200 | 230 | 15 | 6 |
| 200 | 245 | 22.5 | 6 |
| 250 | 300 | 25 | 6 |
Other sizes of our metric honed tubing is available on customer’s
request.
With many years' experiences, we had supplied our honed tubes to
cusomters in home and oversea countries, including Vietnam, USA,
Canada, Singapore, Australia, UAE, South Africa, Indonisia,
Thailand and so on.
As one of the leading hydraulic cylinder honed tube manufacturers
and suppliers in China, we sell hydraulic honed tubing to customers
and provide full range of technical support. Please contact us for
more information.
