    Hydraulic heavy duty pipe clamps / heavy series pipe clamps /heavy pipe clamps/tube clamps

    Ask Lasest Price
    Brand Name : YMP
    Certification : ISO 9001
    Model Number : YMPH*G*
    Price : 1 USD/PC
    Delivery Time : 7 days
    Payment Terms : T/T
    Supply Ability : 100000 pieces per week
    • Product Details
    • Company Profile

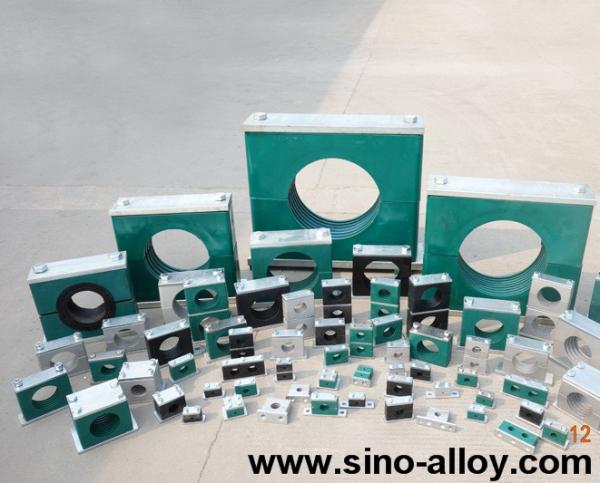

    Hydraulic heavy duty pipe clamps / heavy series pipe clamps /heavy pipe clamps/tube clamps

    1) Size range:
    fit for tube / pipe size O.D. 6mm -508 mm
    2) Structure:
    Assembly including cover plate, welded plate (elongated plate available), clamp bodies (2), high strength bolts (2).
    Heavy duty rail nut pipe clamps (H-G3 series) available: cover plate + clamp body(2)+ bolts(2) + rail nuts(2), installed on channels or rails.
    Stacking heavy duty pipe clamps (H-G5) available (max. 5 layers): Stackable Bolts + Clamp body + safety locking plates.
    3) Material:
    Cover Plate: Galvanized Carbon steel / stainless steel(304/316)
    Welded Plate: Galvanized Carbon steel / stainless steel (304/316)
    Bolts: High strength carbon steel(galvanized) / stainless steel (304/316)
    Clamp Body: Polypropylene(PP) / Polyamide(PA) / Aluminum(AL)
    Excellent UV, weathering and chemical resistance - even under extreme conditions.
    4) Working Temperature:
    PP -30 centi degree up to +90 centi degree in dark green colour
    PA -40 centi degree up to +120 centi degree in dark colour
    Alu. for high temperature application.
    5) Application:
    Heavy duty pipe clamps are suitable for oil, liquid and gas pipe / tube installation and fastening in the hydraulic system in different areas such as the metallurgy, construction machinery, petroleum industry, chemical industry, ship buliding, power station and so on.
