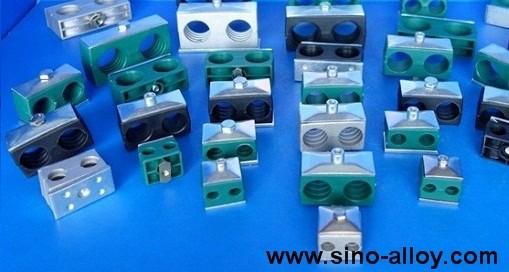

    Heavy duty double pipe clamps According to DIN 3015-3

    Heavy duty double pipe clamps according to DIN 3015 part 2 & part 3:
    1) Size range:
    Heavy duty double pipe clamps are fit for tube / pipe size O.D. 6mm -42 mm, for high mechanical pressure application.
    2) Structure:
    Assembly including heavy duty double cover plate, welded plate, heavy duty double clamp bodies (2), high strength bolt.
    Heavy duty double rail nut clamps (T-G3 series) available: cover plate + clamp body(2)+ bolt + rail nut, installed on channels or rails.
    Stacking Heavy duty double Clamps (T-G6) available (max. 5 layers): Stacking Bolts + Clamp body + safety locking plates.
    3) Material:
    Cover Plate: Galvanized carbon steel / stainless steel(304/316)
    Welded Plate: Galvanized carbon steel / stainless steel (304/316)
    Bolts: High strength carbon steel(galvanized) / stainless steel (304/316)
    Clamp Body: Polypropylene(PP) / Polyamide(PA) / Aluminum(AL)
    Excellent UV, weathering and chemical resistance – even under extreme conditions.
    4) Working Temperature:
    PP -30 centi degree up to +90 centi degree in dark green colour
    PA -40 centi degree up to +120 centi degree in dark colour
    Alu. for high temperature application.
    5) Features:
    Hyraulic Double pipe clamps produced by Younglee have below advantages.
    - Excellent UV, weathering and chemical resistance – even under extreme conditions.
    - Strong strength, accurate dimensions, good corrosion resistance and durable in use;
    6) Application:
    Heavy duty double pipe clamps are suitable for oil, liquid and gas pipe / tube installation and fastening in the hydraulic system in different areas such as the metallurgy, construction machinery, petroleum industry, chemical industry, ship buliding, power station and so on.
