1) Size range:

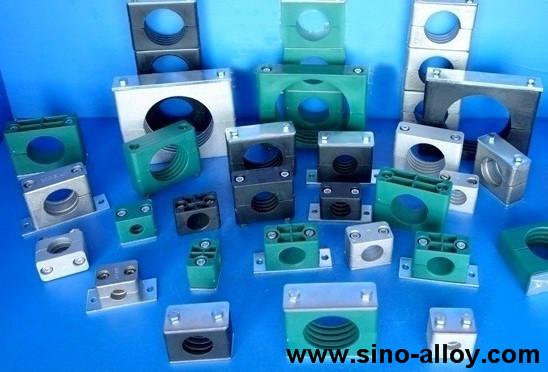

Light duty hydraulic pipe clamps are fit for tube / pipe size O.D. 6mm -102mm
2) Structure:
Assembly of light duty hydraulic pipe clamps normally including cover plate, welded plate (elongated plate
available), clamp bodies (2), high strength bolts (2).
Rail nut hydraulic pipe clamps (L-G9 series) available: cover plate + clamp body(2)+ bolts(2) +
rail nuts(2), installed on steel channels or rails.
Stacking hydraulic pipe clamps (L-G13) available (max. 5 layers): Stacking Bolts + Clamp body +
safety locking plates.
3) Materials of light duty hydraulic pipe clamps:
Cover Plate: Galvanized Carbon steel(mild steel) / stainless
steel(304/316)
Welded Plate: Galvanized Carbon steel / stainless steel (304/316)
Bolts: Galvanized carbon steel / stainless steel (304/316)
Clamp Body: Polypropylene(PP) / Polyamide(PA) / Aluminum(AL)
4) Working Temperature:
Light duty hydraulic pipe clamps with PP clamp body: -30 centi
degree up to +90 centi degree in dark green colour
Light duty hydraulic pipe clamps with PA clamp body: -40 centi
degree up to +120 centi degree in dark colour
Light duty hydraulic pipe clamps with Aluminum clamp body for high
temperature application up to 300 ℃.
5) Features:
Light duty hydraulic pipe clamps produced by Younglee have below advantages.
- Excellent UV, weathering and chemical resistance – even under
extreme conditions.
- Strong strength, accurate dimensions, good corrosion resistance
and durable in use;
6) Application:
Light duty hydraulic pipe clamps are suitable for oil, liquid and gas pipe /tube installation and
fastening in the hydraulic system in different areas such as the
metallurgy, construction machinery, petroleum industry, chemical
industry, ship buliding, power station and so on.
