    Standard / light duty hydraulic pipe clamps with stainless steel plates and bolts

    Ask Lasest Price
    Brand Name : YMP
    Certification : ISO 9001
    Model Number : YMPL***
    Price : 1 USD/PC
    Delivery Time : 7 days
    Payment Terms : T/T
    Supply Ability : 100000 pieces per week
    • Product Details
    • Company Profile

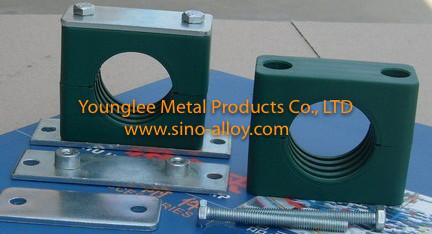

    Standard / light duty hydraulic pipe clamps with stainless steel plates and bolts

    Light duty pipe clamps / Standard hydraulic pipe clamps with stainless steel plates & bolts according to DIN 3015 part 1:
    1) Size range:
    Standard hydraulic pipe clamps are fit for tube / pipe size O.D. 6mm -102mm
    2) Structure:
    Assembly including cover plate, welded plate (elongated plate available), clamp bodies (2), high strength bolts (2).
    Rail nut pipe clamps (L-G9 series) available: cover plate + clamp body(2)+ bolts(2) + rail nuts(2), installed on steel channels or rails.
    Stacking pipe clamps (L-G13) available (max. 5 layers): Stacking Bolts + Clamp body + safety locking plates.
    3) Materials:
    Cover Plate / safety locking plates: Stainless steel (304 / 316)
    Welded Plate: Stainless steel (304 / 316)
    Bolts: Stainless steel (304 / 316)
    Rail nuts: Stainless steel (304 / 316)
    Clamp Body: Polypropylene(PP) / Polyamide(PA) / Aluminum(AL)
    4) Features:
    Excellent UV, weathering and chemical resistance – even under extreme conditions.
    With strong strength, accurate dimensions, good corrosion resistance and durable in use.
    5) Working Temperature:
    PP -30 centi degree up to +90 centi degree in dark green colour
    PA -40 centi degree up to +120 centi degree in dark colour
    Alu. for high temperature application, upto 500 ℃.
    6) Application:
    Standard hydraulic pipe clamps are suitable for oil, liquid and gas pipe /tube installation and fastening in the hydraulic system in different areas such as the metallurgy, construction machinery, petroleum industry, chemical industry, ship buliding, power station and so on.
